The AUTOOL SDT203 is a professional-grade smoke leak detector designed to locate leaks in automotive EVAP systems, vacuum lines, intake manifolds, exhaust systems, and more. Featuring built-in air generation and oil heating capabilities, the SDT203 produces a dense smoke output for accurate and efficient leak detection. It’s an essential tool for workshops diagnosing hard-to-find air and vacuum leaks across a wide range of vehicles.
R6,037.50
Pay over 3 EQUAL zero-interest instalments of R2,012.50 with PayJustNow.
Or pay over 12 instalments of with PayJustNow.
Find out how…
Your flexible payment provider.
Example payment for
How does PayJustNow work?
You can complete sign-up in under 2 minutes – no need to leave your cart!
Working Principle

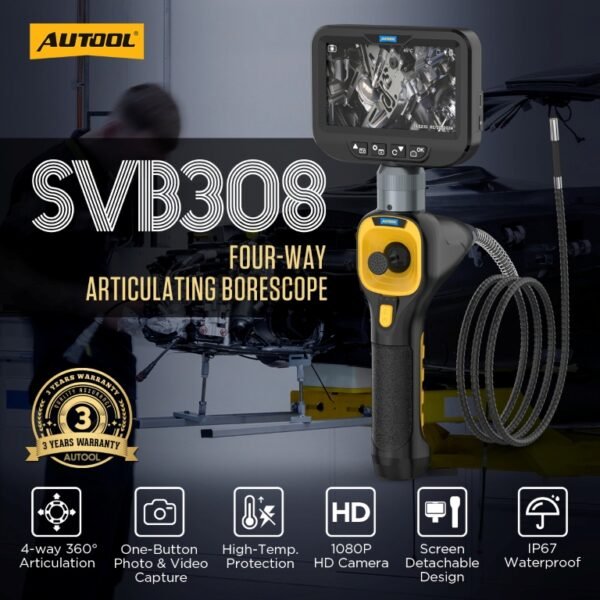

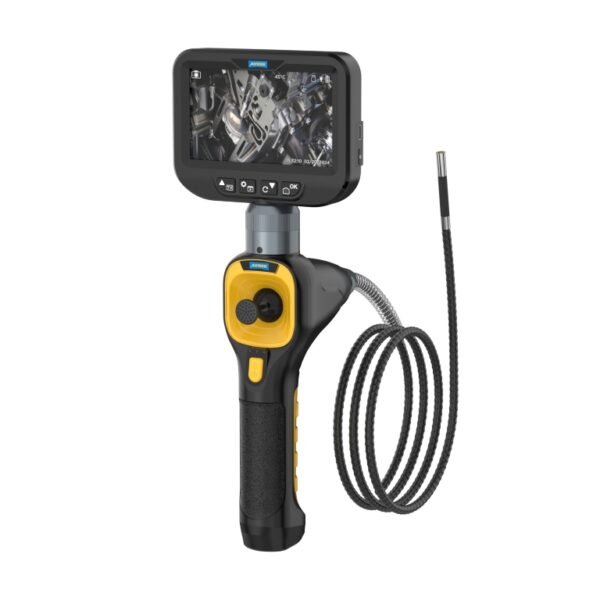

Autool SVB308 Engine Borescope camera utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures. The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation, making it an essential tool for efficient and non-destructive testing.

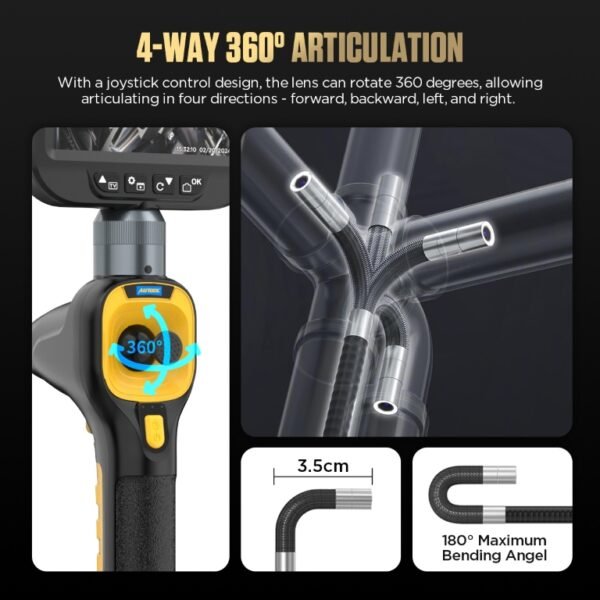

360° Four-way Lens: The articulating borescope features a joystick-controlled design, allowing the lens to rotate 360 degrees. It can easily access narrow, curved spaces with flexibility.

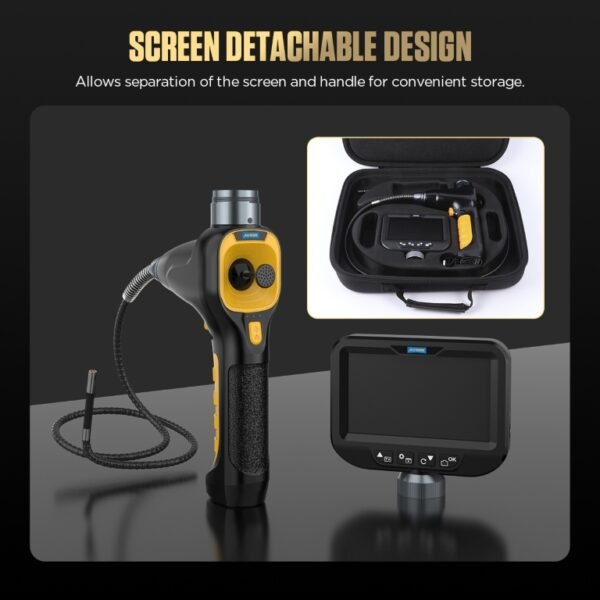

Detachable Design: The flexible hose and display screen are detachable, making it convenient for storage and portability.

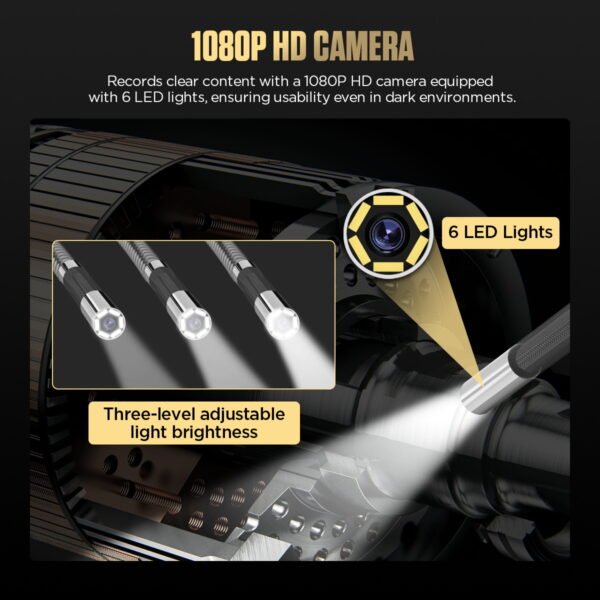

HD Camera: Equipped with a 1080P HD camera and 6 LED lights, providing accurate and detailed feedback with high-resolution imaging. The LED lights ensure clear visibility even in low-light or dark conditions.

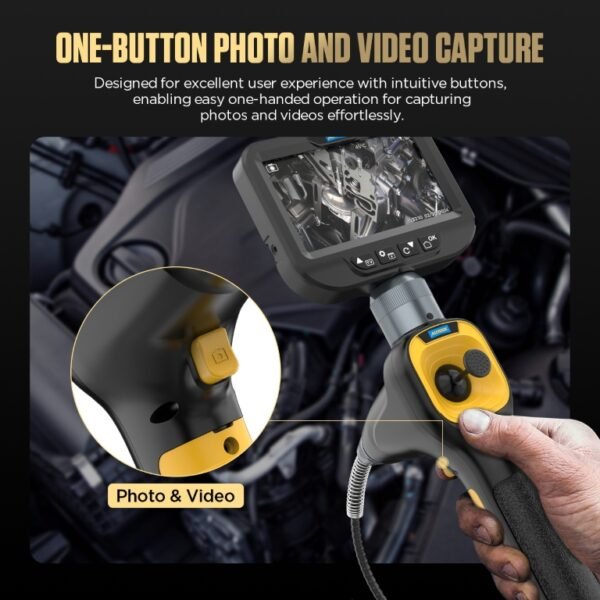

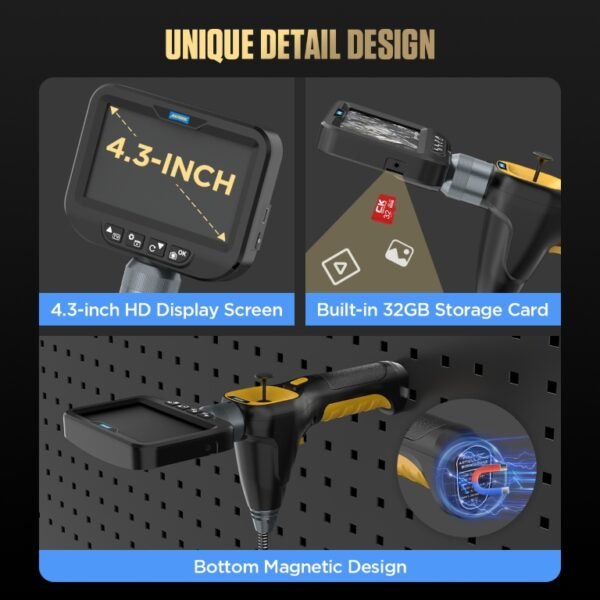

Detail Design: The 4.2-inch display comes with a built-in 32GB memory card, supporting JPG image and AVI video recording. A sturdy magnetic base makes it easy to store after use.

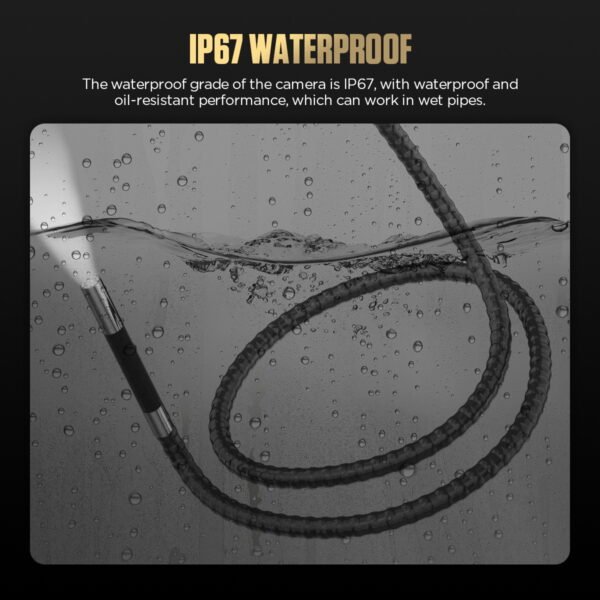

IP67 Waterproof Rating: The borescope camera is rated IP67 for water and oil resistance, making it suitable for use nside damp pipes.
Three-year warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.

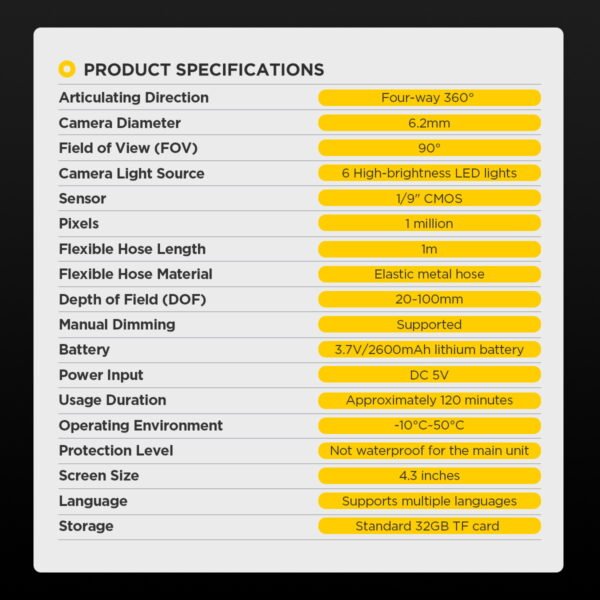

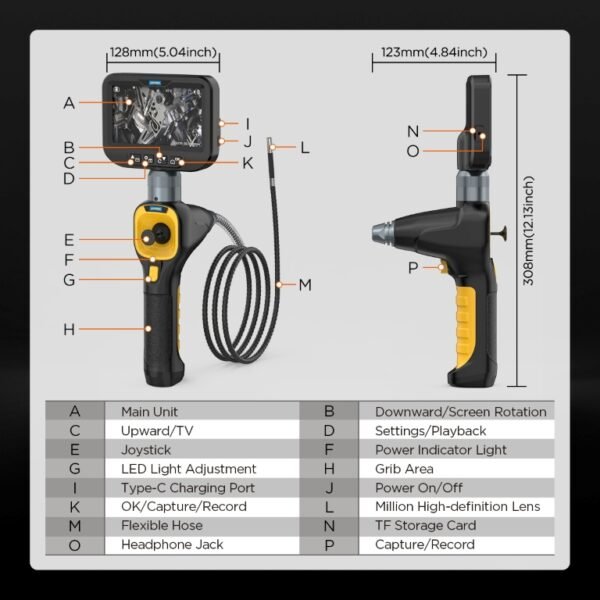

| SVB308 | |
| Articulating Direction | Four-way 360° |
| Camera Diameter | 6.2mm |
| Field of View(FOV) | 90° |
| Camera Light Source | 6 High-brightness LED lights |
| Sensor | 1/9″ CMOS |
| Pixels | 1 million |
| Flexible Hose Length | 1m |
| Flexible Hose Material | Elastic metal hose |
| Depth of Field(DOF) | 20-100mm |
| Manual Dimming | Supported |

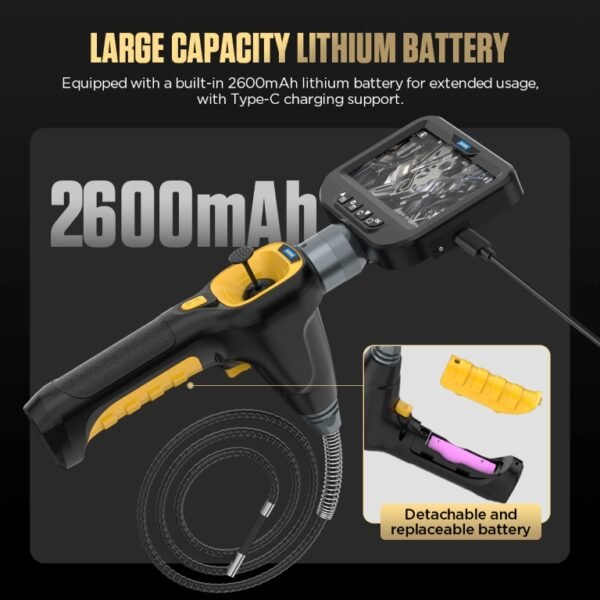

| Battery | 3.7V/2600mAh lithium battery |
| Power Input | DC 5V |
| Usage Duration | Approximately 120 minutes |
| Operating Environment | -10°C-50°C |
| Protection Level | Not waterproof for the main unit |
| Screen Size | 4.3 inches |

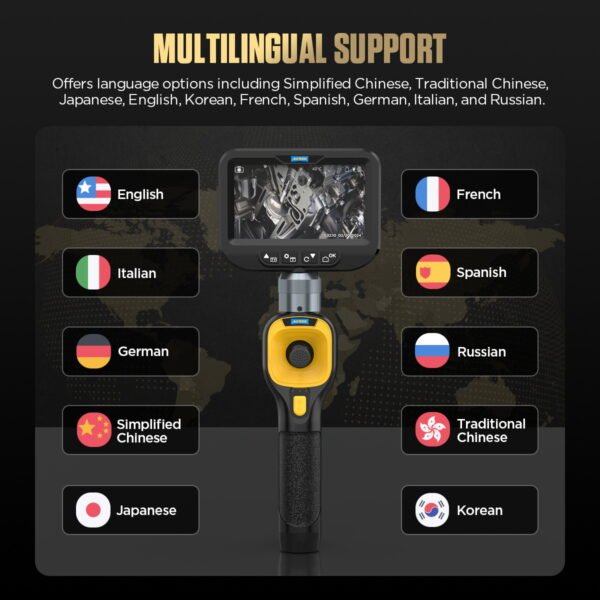

| Language | Supports multiple languages |
| Storage | Standard 32GB TF card |
1x AUTOOL SDT203 Smoke Leak Detector
1x Smoke Hose
1x Power Cable with Clamps
1x Universal Rubber Cone Adapter
1x Oil Refill Bottle
1x Hook & Hanging Chain
1x Instruction Manual
36 Months Limited Factory Warranty
