The LAUNCH Pro 3 Link HD is a new stand alone Commercial vehicle diagnostic tool. It includes full software coverage on over 150 manufacturers and works on most trucks, busses, trailers, earth moving, agricultural and vessels. The diagnostic tool features multiple service functions to assist in calibrations, adjustments and configurations.
R50,900.00
Pay over 3 EQUAL zero-interest instalments of R16,966.67 with PayJustNow.
Or pay over 12 instalments of with PayJustNow.
Find out how…
Your flexible payment provider.
Example payment for
How does PayJustNow work?
You can complete sign-up in under 2 minutes – no need to leave your cart!
Brand new tablet and hardware design with extensive vehicle coverage
Flexible communication methods through WiFi, Bluetooth or USB
Functions include Reading and clearing of faults, Adaptations, coding, service resets and more
Service functions include DPF regen, Parameter settings, Cylinder cut off, Compression test, Service reset, Injector coding, Speed limit adjustments, Idle speed adjustment, Nox sensor adjustment.
Toolbox for add on modules like Oscilloscope’s, Sensorbox, Battery tester, Videoscope and more
3 Years free online updates
Full Health report feature to scan and identify faults on all modules within minutes
Print and email the detailed diagnostic reports efficiently and directly off the tool
Optional commercial set for older truck and bus adapters sold separately
Comes with a set of commercial adapters
OS Android 10
Display 10” 1280*800
CPU 2.0Ghz, Quad – Core
RAM 4GB
Storage 64GB
Battery 47.88Wh (7.6V, 6300mAh)
Camera Rear 8MP
VCI Connection 2.4GHz/5GHz
Dimension 274*190.5*40.55(mm)
Interface Type Type A*1 & Type C*1

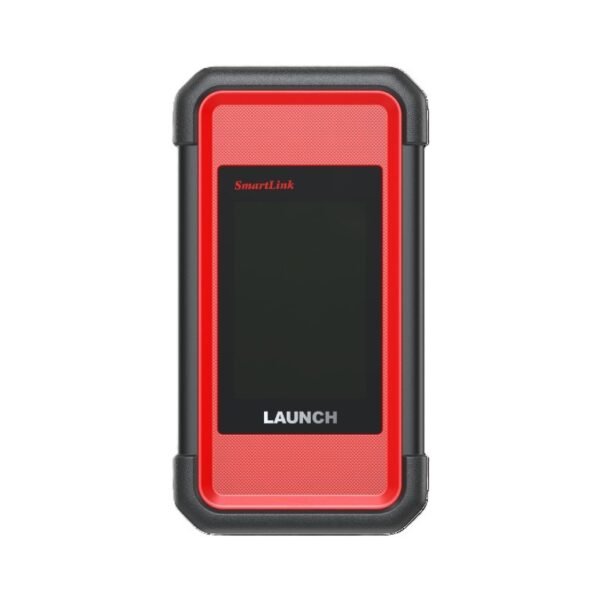

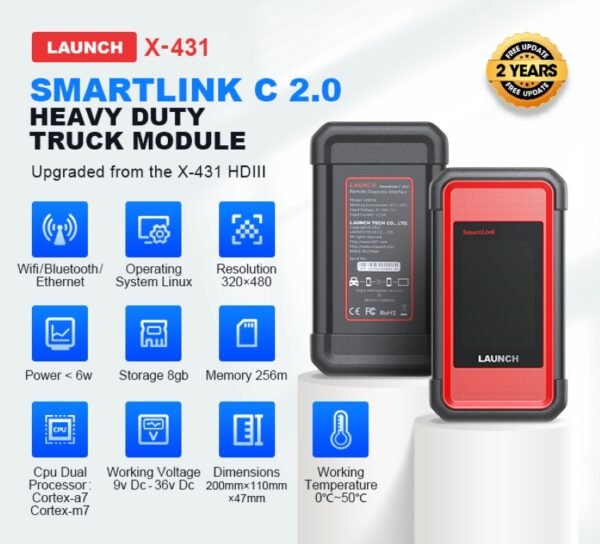

SmartLink C V2.0 specs
Display 3.5”, 320*480
Wi-Fi 2.4GHz/5GHz
Communication Bluetooth/Wi-Fi/Ethernet
Dimension 200*110*47 (mm)
Working Voltage 9V DC – 36V DC
Storage 8GB

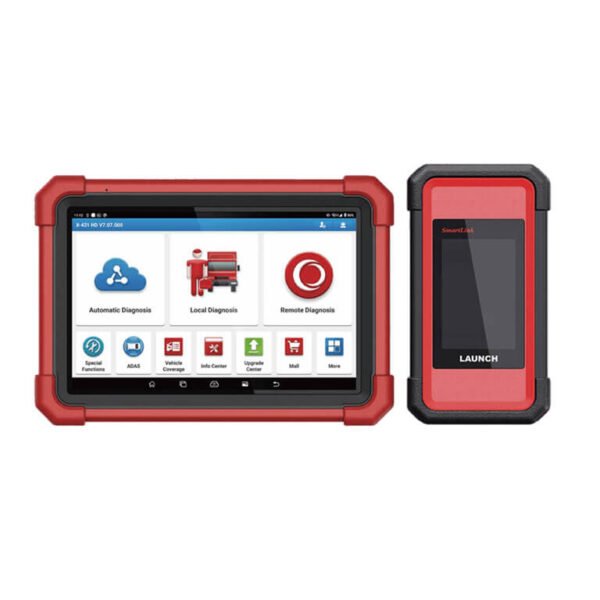

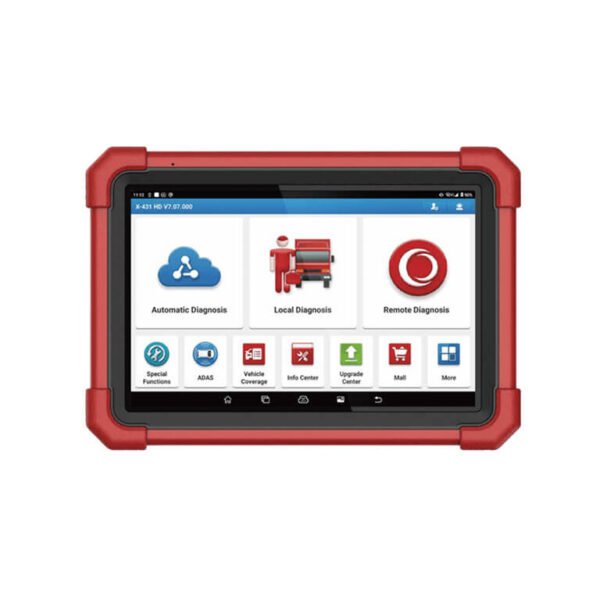

10.1-inch Android Tablet
SmartLink C V2.0 VCI

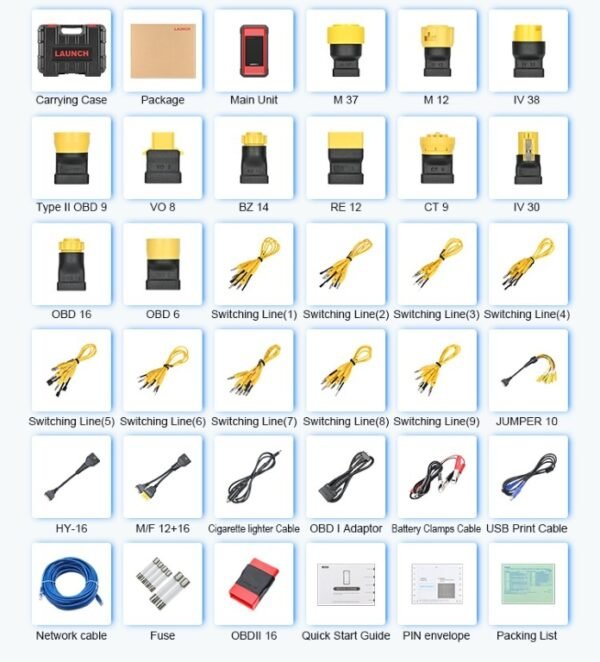

Commercial Adapter Kit: A full set of heavy-duty diagnostic connectors and cables (e.g., 6-pin, 9-pin, 16-pin) for various commercial vehicle ports.
OBD II & Extension Cables: Standard cables to hook the SmartLink VCI to the tablet or vehicle port.
Charging & USB Cables: Wall charger and data transfer cables.
Protective Carrying Case: A durable, hard-shell storage case to keep the tablet and all connectors organized.
